New
PtMP Base Stations
MultiSector Connectorized
Dual-Carrier PtMP BS | Connectorized | 4.9 GHz – 6 GHz
RADWIN MultiSector Connectorized is a compact, site-in-a-box dual-carrier base station designed for flexible, high-capacity deployments. Supporting up to four external antennas and delivering 1.5 Gbps, it’s ideal for multi-sector installations with diverse coverage needs, including long-range rural connectivity, city-wide video surveillance, and smart infrastructure.
This versatile solution enables per-sector antenna selection and optional self-backhaul, all within a compact, cost-saving architecture.
Genuine RADWIN product with manufacturer warranty — supplied and supported by XTREAM, the official RADWIN distributor in Dubai for the Middle East and Africa.
Product highlights
- Dual-carrier base station with up to 2 × 750 Mbps
- Operates in the 4.9 GHz – 6 GHz band
- Integrated GPS for TDD sync and colocation
- Built-in switch for lower MultiPoP costs

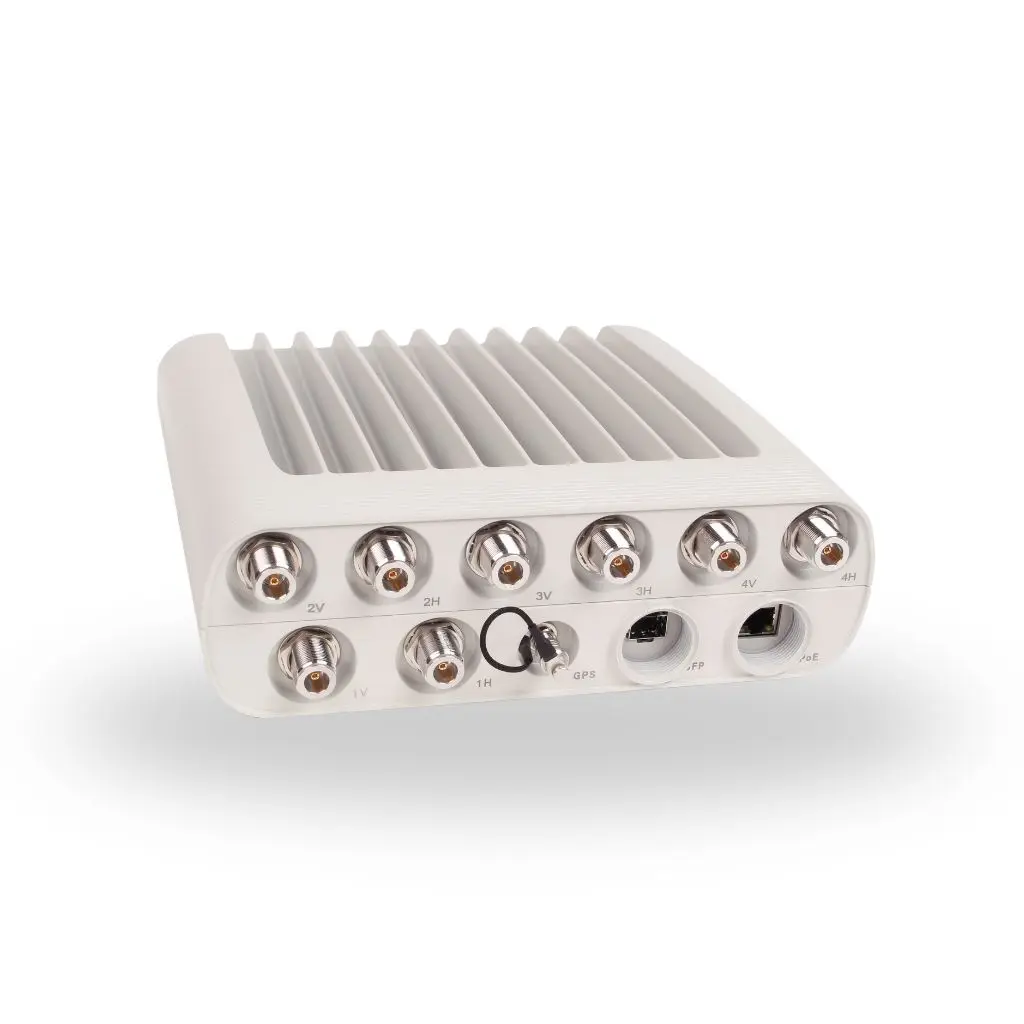

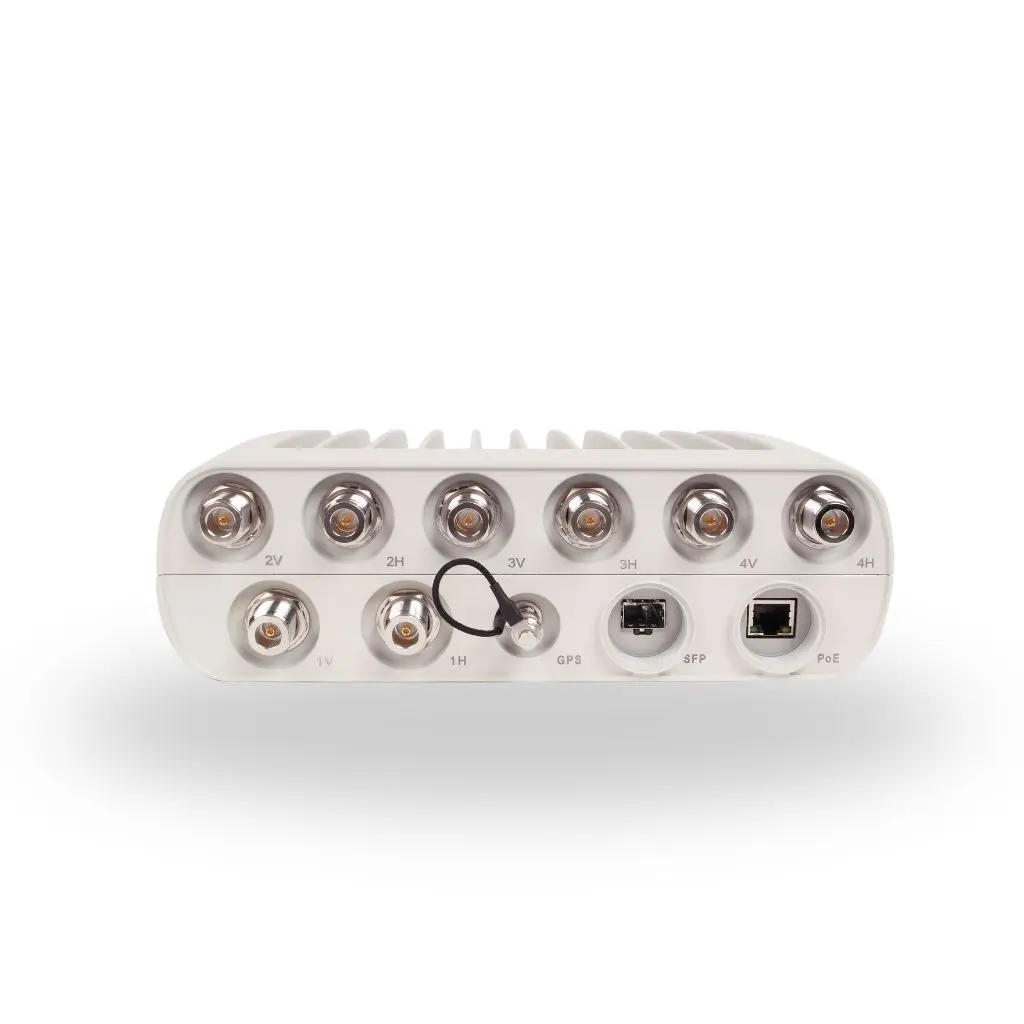

- 4 x N-type MIMO antenna connectors
- SLA and best-effort service-level support
- Supports up to 128 Subscriber Units
- Flexible external antenna configuration per sector
Main values
Reduced site complexity and total cost of ownership
Combines radios, a switch, GPS, and power distribution in a single enclosure, minimizing equipment, cabling, and installation effort.
Robust performance and interference immunity
Delivers 360° coverage using sectorized topology, providing greater range and interference protection compared to Omni antenna solutions.
Flexible deployment architecture
Supports a wide range of external antennas per sector and offers optional self-backhaul, removing the need for a separate PtP unit.
High spectrum efficiency with minimal frequency use
Covers full 360˚ with just two frequency channels thanks to frequency reuse factor 2, enhanced by high-order modulation (256 QAM).
